Successfully executing Vertical Beauty Device Enclosure Manufacturing requires strict control over sheet metal deformation and complex surface treatments. At Zhongrongda, our engineering team recently manufactured a minimalist integrated chassis for a high-end physiotherapy and medical beauty device.
This specific project demanded strict adherence to exact physical dimensions while maintaining a flawless, medical-grade aesthetic. The final physical dimensions of this unit measure exactly 40cm in length, 34cm in width, and 97cm in height.
Balancing a top-heavy, trapezoidal structure with internal load-bearing requirements creates significant fabrication bottlenecks. Below, our team details the specific structural problems encountered and the exact manufacturing processes we implemented to solve them.
Overcoming Trapezoidal Sheet Metal Bending Challenges
The core structural design of this 97cm tall chassis relies on 6063-T5 aluminum alloy sheet metal and thickened cold-rolled steel. This ensures a lightweight yet highly stable foundation.

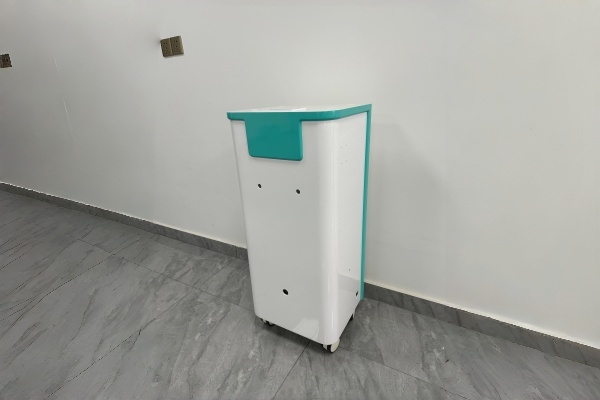

The primary engineering problem stems from the enclosure’s unique shape: it features a micro-trapezoidal, waist-narrowing design that is wider at the top and narrower at the bottom.
Forming this shape using standard press brakes typically results in severe twisting. When bending tapered side panels, the stress distribution is uneven, frequently causing the entire box structure to tilt or become asymmetrical.
Implementing CNC Crowning and Angle Compensation
To solve this bending deformation, our team at Zhongrongda completely bypassed standard manual press operations.
We utilized advanced CNC press brakes equipped with automated mechanical crowning systems. Before processing the 6063-T5 aluminum, our engineers calculated the exact springback coefficient specific to the tapered geometry.
We programmed custom angle compensations into the CNC controller. This allowed the tooling to apply varied pressure across the length of the bend, neutralizing the uneven stress caused by the trapezoidal shape.
The result is a perfectly symmetrical, upright chassis without any structural twisting. If your current equipment enclosures suffer from assembly misalignment due to bending inaccuracies, our engineers can audit your CAD files to optimize the flat patterns for precise forming.
Achieving Seamless Integration and Structural Integrity
A minimalist exterior requires the complete elimination of visible fasteners, overlapping joints, and rough edges. The trapezoidal panels must join seamlessly to maintain the sleek aesthetic.
Standard welding introduces excessive heat, which distorts the large, flat aluminum side panels. Furthermore, mechanical grinding often leaves microscopic scratches that become highly visible after powder coating.
Seamless Laser Welding for Unibody Aesthetics
Our team deployed continuous fiber laser welding to join the formed panels.
We locked the pre-bent trapezoidal components into custom rigid fixturing jigs. The highly focused laser beam allowed our technicians to achieve deep penetration welds with a drastically reduced heat-affected zone.
This eliminated warping on the 97cm tall side panels. Post-welding, we ground the seams completely flush and polished the corners.
This creates a continuous, unibody structure with perfectly smooth, rounded corners and absolutely no sharp burrs. This level of seamless integration is a standard requirement for all our Beauty Device Enclosures.
Precision Machining for Functional Components
While the external chassis utilizes sheet metal, medical and beauty devices require highly precise internal components for fluid routing and sensor mounting.
For the internal medical-grade components of this device, our team strictly focused on plastic shells and CNC Machining plastic processing, avoiding metal fabrication in these sensitive internal areas to prevent contamination risks.
For the exterior metal chassis, the functional installation holes posed a different challenge. The design requires multiple mounting points and ventilation slots across the curved and flat surfaces.
Punching these holes prior to bending causes the holes to stretch and deform during the press brake operation.
5-Axis CNC Milling Post-Forming
To guarantee absolute hole accuracy, we performed all functional cutouts after the laser welding phase.
We clamped the welded unibody chassis into a 5-axis CNC mill. This allowed us to machine the installation holes from multiple angles without re-fixturing the large 40x34x97cm part.
This specific process ensures strict coaxiality and positional tolerance across multiple hole locations. The resulting cutouts are perfectly vertical, dimensionally exact, and completely free of burrs, ensuring internal wiring and cooling components align flawlessly during final assembly.
We validated the fitment of internal plastic components early in the project lifecycle utilizing advanced Rapid Prototyping techniques, confirming all tolerances before cutting the first sheet of production metal.
Perfecting Dual-Color Surface Treatments

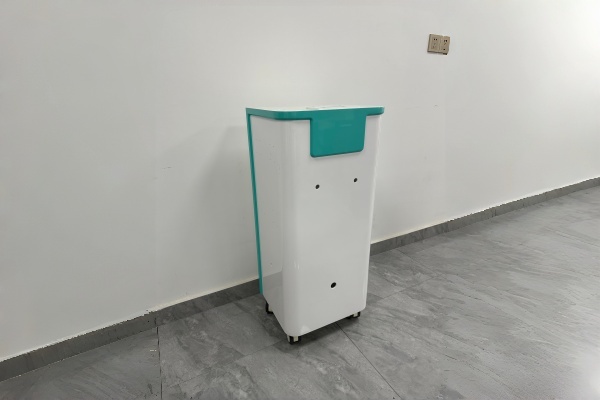

The exterior finish of this medical beauty device requires a high-gloss white body with a precisely defined teal (cyan-green) top decorative panel.
The paint must be medical-grade, environmentally friendly, highly scratch-resistant, and antibacterial. The primary manufacturing problem is managing large, flat, high-gloss surfaces and ensuring a sharp boundary between the two colors.
Eliminating Orange Peel on Large Flat Surfaces
High-gloss white powder coating on long vertical surfaces is notoriously prone to “orange peel,” color deviation, and paint sagging.
To solve this, our team implemented a strict multi-layer mechanical polishing protocol on the raw aluminum to remove all micro-scratches. Inside our climate-controlled electrostatic spray booths, we optimized the spray gun voltage and distance.
By applying the powder in a tightly controlled environment and utilizing a stepped infrared curing profile, we allowed the paint to cross-link evenly before gravity could cause sagging. The result is a glass-like, flawless white finish.
Executing Crisp Dual-Color Boundaries
The top section required a distinct teal finish. Spraying two colors on a single continuous unit without cross-contamination or “bleeding” is a highly critical process.
Our technicians utilized specialized high-temperature, residue-free masking tapes designed specifically for powder coat baking cycles.
We applied the high-gloss white first, fully cured it, then meticulously masked the boundaries before applying the teal finish to the designated upper zones and the separate aluminum decorative panel.
This exact process guarantees a razor-sharp, orderly color boundary with zero color mixing.
During the final integration, the top teal aluminum panel was seamlessly assembled onto the white chassis. To ensure the internal bases supported the structure without scratching the paint, we leveraged specific ABS plastic properties and applications to CNC machine custom, soft-touch mounting brackets.
This meticulous approach to material selection and finishing guarantees a superior product that elevates your brand’s presence in clinical environments.
Frequently Asked Questions (FAQs)
Q1: What materials are best for Vertical Beauty Device Enclosure Manufacturing?
At Zhongrongda, we utilize 6063-T5 aluminum alloy and thickened cold-rolled steel for the main body to ensure lightweight stability. We use dedicated aluminum alloy plates for decorative panels to ensure a premium, durable finish.
Q2: How do you prevent the chassis from tilting during trapezoidal bending?
Trapezoidal shapes cause uneven stress during bending. We solve this by using advanced CNC press brakes with automated crowning systems and custom angle compensations to guarantee perfect symmetry without twisting.
Q3: Why do you use laser welding for these medical device chassis?
Standard welding distorts large, flat metal panels due to excessive heat. We utilize continuous fiber laser welding to minimize the heat-affected zone, allowing us to create a unibody structure with no warping and completely invisible seams.
Q4: How do you ensure the functional holes are perfectly aligned?
We avoid punching holes before bending, as they will stretch. Instead, we perform 5-axis CNC precision machining on the fully welded chassis, ensuring strict coaxiality, positional tolerance, and burr-free edges for all functional cutouts.
Q5: How do you achieve a flawless high-gloss finish on large flat surfaces?
To prevent “orange peel” and sagging, we control the electrostatic voltage inside a climate-controlled spray booth. We also use a stepped infrared baking process that allows the powder to melt flat before curing.
Q6: What are the exact dimensions of this minimalist physiotherapy enclosure?
The specific dimensions for this integrated vertical beauty device equipment chassis are strictly manufactured to 40cm in length, 34cm in width, and 97cm in height.
Q7: How do you prevent color bleeding in dual-color spray painting?
We utilize a multi-step baking process and specialized high-temperature, residue-free masking tapes. We cure the base white color fully before masking and applying the teal, ensuring a razor-sharp boundary with absolutely no cross-contamination.
Q8: Are the internal components also made of sheet metal?
While the structural exterior is metal, we strictly focus on plastic shells and CNC plastic processing for sensitive internal medical-grade fluid and sensor housings to eliminate any risk of metal contamination.
Q9: How do you guarantee the top decorative panel fits seamlessly?
We machine interlocking registration tabs into the chassis and the top aluminum panel. By controlling the sheet metal tolerances during laser cutting and bending, the final assembly snaps together with a zero-gap, seamless fit.
Q10: Can this surface finish withstand medical cleaning agents?
Yes. The high-gloss electrostatic powder coating we apply is specifically formulated to be a medical-grade, environmentally friendly finish. It is highly resistant to scratches and withstands frequent wiping with strong antibacterial agents.
